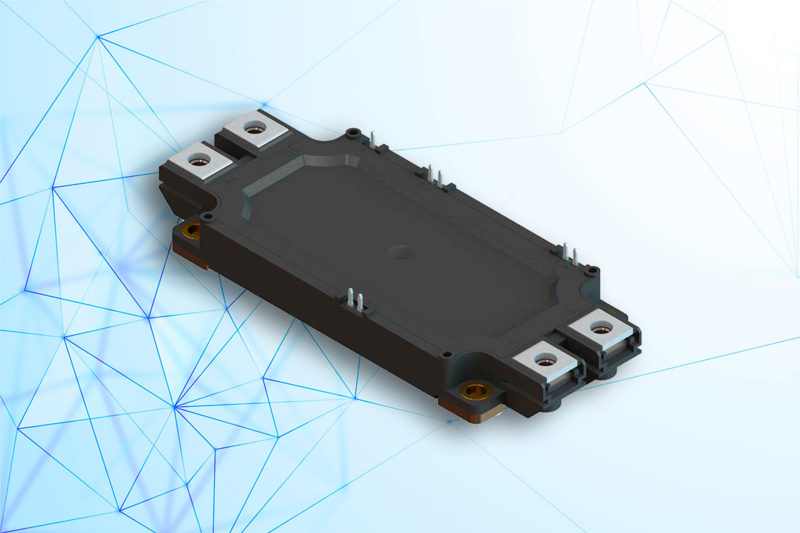

MID2 IGBT modules are available for order
The range of IGBT modules manufactured by Proton‑Electrotex JSC has been expanded with low‑inductance MID2 modules. These modules are designed for compact systems that require high levels of efficiency and reliability. Mechanical strength and high thermal cycling performance guarantee the reliability and long service life of the devices.
The MID2 series includes devices with voltages of 1200 V and 1700 V and currents from 300 A to 750 A. Detailed information and technical documentation for these products can be found in the relevant section.
The standardized housing and soldered design make the module quick and easy to install, while its flat design, measuring just 17 mm in height, allows for the creation of very compact inverter systems.
The improved design of the MID2 module includes a number of upgrades:
1. The power busbar cross-section has been increased to accommodate high-current devices.
2. The PCB layout under the thermistor has been optimized.
3. The mounting points have been redesigned and reinforced.
4. The housing has been redesigned to improve the ease of attaching the busbars to the module.
One of the key considerations during the development of the IGBT MID2 was the localisation of materials and components. It should be noted that the devices in this range have the highest possible level of localisation.
The modules are optionally available with dual-channel DI215-17-E-1 drivers, manufactured in-house, which can be installed directly on the module or connected via a wired connection.
"The release of the IGBT MID2 series is an important step in the development of our IGBT module product line. We are constantly working to improve and modernize the company's existing product line. We have placed particular emphasis on optimizing the device design and improving reliability. "We are confident that this series will be successfully used and demonstrate high efficiency in Russian and international projects," notes A.S. Vishnyakov, a new technology engineer.
The low‑inductance housing and thermal resistance make the MID2 series IGBT a good choice for use in inverters. Modules in this range can be used in industrial drives, electric transport, renewable energy, UPS systems, power grids, and railway transport.
The MID2 series IGBT modules embody advanced technologies and strict quality control at all stages of production. The company's management system is certified to ISO 9001, ISO 14001, and ISO/TS 22163, confirming the high quality of its products.
You can place an order or receive additional information about the product and delivery times using the special form on the website or by contacting us at inbox@proton-electrotex.com
About Proton-Electrotex, JSC:
Proton-Electrotex is the Russian leader in designing and manufacturing power semiconductors including diodes, thyristors and IGBT modules as well as heatsinks, voltage suppressors, resistors and measurement equipment. The company is located in Orel city and ships its products through its partners and distributors all over the world. Please visit website www.proton-electrotex.com for more details about Proton-Electrotex and its offer of products and services.
